Features:

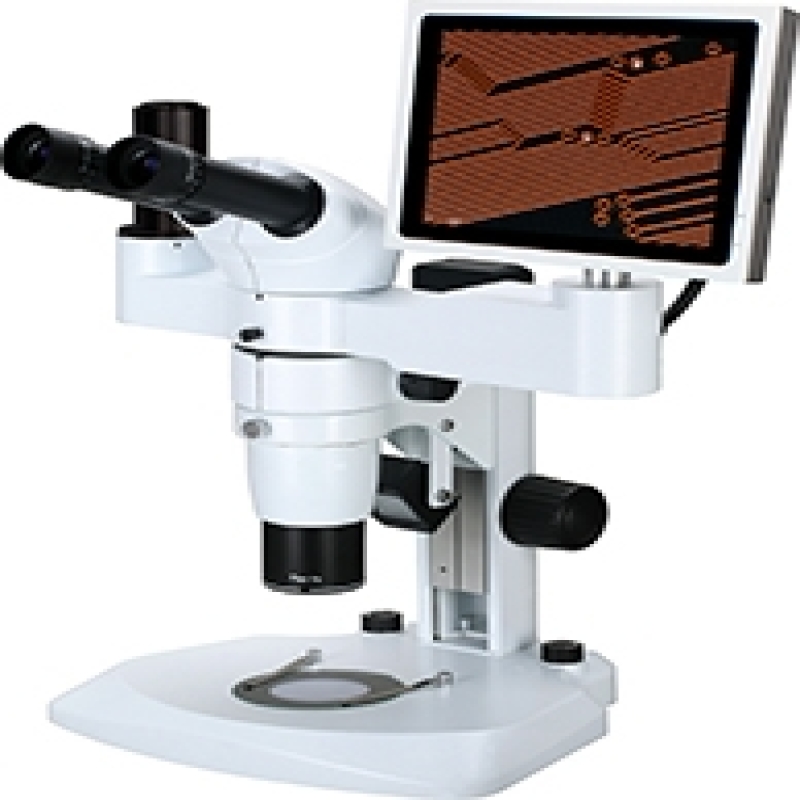

• NSZ-800LCD series are new generation microscope with micro computer which drives the operation system WinCE5.0 and display system.
• It supports 100M Ethernet network and WI-FI wireless net and can communicate with PC.
• 8.4 Inch TFT touching screen, friendly man-machine interface, multiple peripheral interfaces and powerful processing function, make it very easy to operate. And it can be widely used in various optical micro fields, such as teaching, researching, electronic checking and so on.



Model		NSZ-806LCD	NSZ-808LCD	NSZ-810LCD
Viewing Head	Binocular head, 20°inclined, interpupillary 55-75mm	●	●	●
	Tilting binocular head, 0°-35° inclined, interpupillary 55-75mm	○	○	○
Eyepiece	EW10×/Φ22	●	●	●
	WF15×/Φ16	○	○	○
	WF20×/Φ12	○	○	○
Zoom Objective	0.8×--5×	●
	0.8×--6.4×		●
	0.8×--8×			●
Objective	Plan Apochromatic objective 0.5×	○	○	○
	Plan Achromatic objective 1×	●	●	●
	Plan Achromatic objective 2×	○	○	○
	Achromatic objective 0.3×	○	○	○
	Achromatic objective 0.5×	○	○	○
Zoom Ratio	1:06	●
	1:08		●
	1:10			●
Working Distance	78mm	●	●	●
Focusing	Focusing range 105mm	●	●	●
Illumination	Transmission or reflection LED illumination, brightness adjustable	●	●	●
Digital Part	5.0 Mega pixels CMOS chip	●	●	●
	Wifi and Blueteeth	●	●	●
Output	USB2.0、Mini USB、HDMI	●	●	●
Operating System	Android 4.2.2	●	●	●
Software	TouchScope (For microscope)	●	●	●
	NMS client (For PC)
SD Card	Expandable to max 2GB Kinston SD card	○	○	○
Mouse		●	●	●
Optional	Coaxial illumination	○	○	○
	Epi-fluorescent attachment	○	○	○
	Dark field attachment	○	○	○
	Simple polarization set	○	○	○
	Iris diaphragm	○	○	○
	Photography & video attachment	○	○	○
	Coaxial coarse & fine focusing unit	○	○	○
