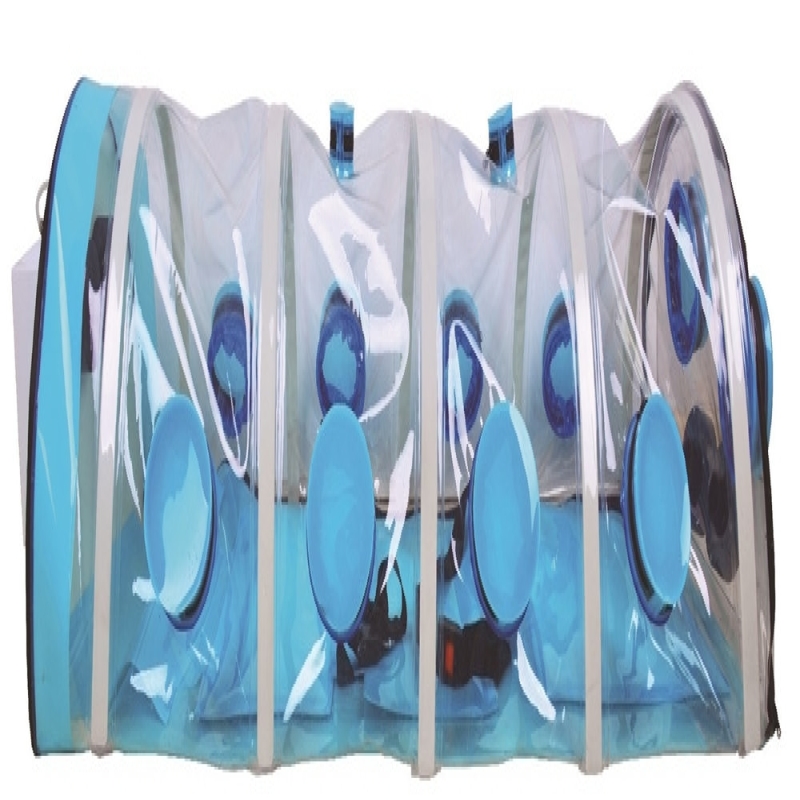

Features:

• The chamber liner is made from a special TPU film and strengthened by inserting ABS poles along each side of the structure.
• The "all around" zipper system allows for the chamber to open completely giving easy operator accessibility.
• The chamber has ten integrated glove portals on three sides to allow for easy access to the patient and two utility portals used for infusions and other medical equipment.
• Isolation chamber is a fully collapsible unit that requires minimal storage space and is ready for use within seconds.
• Isolation chamber complete with Batteries for up to 8 hours of continuous use before battery charge required.
• The chamber negative pressure will be up to -15pa only in 2 minutes after power on.
• The Isolation chamber can be used with a stretcher, which will be easy to move the patient.
• Belt system enables the patient to be fastened while in the chamber or the chamber is securely fastened to a stretcher or bed.


Technical parameters:

Model	BFG-I	BFG-II
Unfolded Size (L*W*H)	1900×690×500mm	1000×500×500mm
HEPA Filter	4pcs, 99.999% efficiency for 0.3μm particles
Airflow Rate:	67±10%（m3/h）
Chamber Noise	＜47dB(A)
Alarm	Audio and visual alarm for internal pressure insufficient and low power
Negative pressure:	Up to -15Pa in two minutes after power on
Components	The main chamber, Particle filter, Negative generation system, 20pcs PVC gloves, Battery and charger
Optional	Stretcher
Load-bearing	Up to 150kg
Power Supply	AC 220V/110V±10%, 50Hz/60Hz, Battery voltage:DC12V
Package Size (L*W*H)	770*570*640mm(carton box)		770*570*540mm(carton box)
Net Weight	18kg		15kg
Gross Weight	20kg		18kg
